Getting Started

Welcome to the DeckSmith documentation. This guide will help you get started with creating your own card decks using simple configuration files.

Installation

Windows

Download and run the installer.

Download for Windows

Once installed, you can launch DeckSmith from the Start Menu.

PyPI (Linux/Universal)

Install DeckSmith via pip:

pip install decksmith

To launch the GUI, run:

decksmith --gui

Creating a project

To create a new project in the GUI, click the New Project button on the welcome screen or the New button in the top header. Select a destination folder and enter a name for your project.

Create a new folder and run decksmith init inside.

This will create two different files:

deck.yaml defines the structure for the cards in the deck. The different elements that compose a card, such as text blocks, images, and shapes, are declared here, along with their sizes, positions, and other attributes. Edit this file with your favorite text editor to add and remove elements or modify their properties.

deck.csv is a data file that holds the contents for the cards of the deck, with each row representing one card. The columns of this file represent dynamic fields that can be referenced in the YAML by name as %column_name%. Adding a new card to the deck is as easy as creating a new row in this file.

deck.yaml syntax

The basic structure of a card is defined as:

width: 250
height: 350
background_color: [255, 255, 255, 0]
elements:
  # <- Card elements go here, like images, text, shapes, etc.

The elements array can contain objects of different types, such as text, image, circle, rectangle, etc.

Common attributes

All elements, regardless of their type, share the following attributes:

id: example-element
type: text | image | ..
position: [0, 0]
relative_to: ["<id>", "<anchor>"]
anchor: top-left | center | ..

# They can also have other attributes specific to their type
# ...

Positioning

The anchor attribute defines the point or corner of the element that will be used to position it within the card.

For example, declaring an element with position: [50, 50] and anchor: center means the center of the element will be in the coordinates [50, 50]. Using an anchor of bottom-left will position the bottom-left corner of the element in that position instead.

The possible anchors are:

 top-left      | top-center    | top-right
---------------+---------------+---------------
 middle-left   | center        | middle-right
---------------+---------------+---------------
 bottom-left   | bottom-center | bottom-right

The relative_to attribute allows positioning elements relative to other elements by referencing their id, and an anchor point for the referenced element. The element will be positioned according to its own anchor and the relative_to anchor for the other element.

Text

An element of type text can have the following attributes:

# Attributes common to all elements:
id: example-text
type: text
position: [0, 0]

# "text" specific attributes:
text: "Hello, world!"
color: [0, 0, 0]
font_path: arial.ttf
font_size: 10
font_variant: Regular | Bold | ..
line_spacing: 4
width: 300
align: left | center | justify | ..
stroke_width: 1
stroke_color: [255, 255, 255]

The line_spacing attribute defines the vertical space in pixels between lines of text.

The width attribute limits the width in pixels for each line before the text wraps to the next line.

Images

An element of type image can have the following attributes:

# Attributes common to all elements:
id: example-image
type: image
position: [0, 10]
relative_to: ["example-text", "bottom-left"]
anchor: top-left

# "image" specific attributes:
path: image.png
filters:
  crop_top: 50
  crop_bottom: 100
  crop_left: -50
  crop_right: 10
  crop_box: [0, 10, 20, 10]
  rotate: 90
  flip: horizontal | vertical
  resize: [400, 400]
  opacity: 50

Positive values in a crop_xxxx filter will cut rows/columns of pixels from that side of the image moving inwards, while negative values will add rows/columns of transparent pixels to that side of the image moving outwards.

Shapes

The following attributes are common to all shapes:

# Attributes common to all elements:
id: example-shape
type: circle | ellipse | ..
position: [0, 0]
relative_to: ["<id>", "<anchor>"]
anchor: top-left | center | ..

# Attributes common to all shapes:
color: [255, 255, 255]
outline_color: [0, 0, 0]
outline_width: 2

# Each type of shape has its own specific attributes
# ...

Circle

The circle shape is defined by a center position and a radius.

# ... (common attributes) ...

# Attributes specific to circles:
position: [1000, 650]
radius: 200

Ellipse

The ellipse shape is defined by a bounding size box. The ellipse will be drawn inside the box, its curve being tangent to its sides.

# ... (common attributes) ...

# Attributes specific to ellipses:
size: [1000, 500]

Polygon

The polygon shape is defined by a list of points that will be used as vertices.

# ... (common attributes) ...

# Attributes specific to polygons:
points: [[0, -100], [30, -30], [100, -30], [40, 20],
         [60, 100], [0, 50], [-60, 100], [-40, 20],
         [-100, -30], [-30, -30]]

Regular polygon

The regular-polygon shape is constructed from a bounding circle (center position, radius), a certain number of sides, and a rotation angle.

# ... (common attributes) ...

# Attributes specific to regular polygons:
position: [-100, 100]
radius: 50
sides: 6
rotation: 45

Rectangle

The rectangle shape is described by a size, and can have its corners rounded by a given corner_radius.

# ... (common attributes) ...

# Attributes specific to rectangles:
size: [200, 300]
corners: [false, false, true, true]
corner_radius: 40

The corners attribute defines which corners should be rounded (true) or straight (false).

Basic example with deck.csv

deck.csv

The deck.csv file is a semicolon-separated table with a title row and a data row for each card in the deck.

name;greeting;r;g;b
John;Nice to see you again;0;255;0
Alice;Have a great day;255;0;0

deck.yaml

You can reference columns from deck.csv in deck.yaml by their name enclosed in % signs.

width: 250
height: 350
background_color: [100, 100, 100]
elements:
  - id: name
    type: text
    text: "Hello, %name%"
    font_size: 24
    color: ["%r%", "%g%", "%b%"]
    align: center
    position: [125, 25]
    anchor: top-center
  - id: greeting
    type: text
    text: "%greeting%"
    font_size: 16
    color: ["%r%", "%g%", "%b%"]
    align: center
    width: 200
    position: [0, 25]
    relative_to: ["name", "bottom-center"]
    anchor: top-center

Building the deck

To build the deck in the GUI, simply click the Build Deck button in the right panel. This will generate the card images in the output folder.

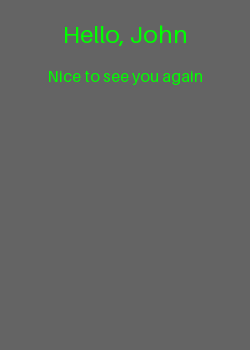

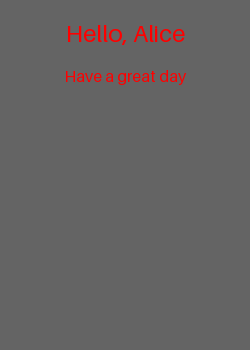

Card 1 Example Card 2 Example

Running decksmith build will create an output folder containing two card images, each with its own greeting in a different color.

Exporting to PDF

To export to PDF in the GUI, click the Export PDF button. A dialog will appear where you can configure the page size, card dimensions, and margins before exporting.

Finally, you can export the deck to PDF by running the command:

decksmith export --width 63.5 --height 88.9 --gap 0.2 output

The --width and --height flags define the real-world width and height in mm for each card, and the --gap flag adds a small line or gap between the cards, to facilitate the job of cutting them, which is especially useful for cards with no border and a similar background color.
